SERIES M

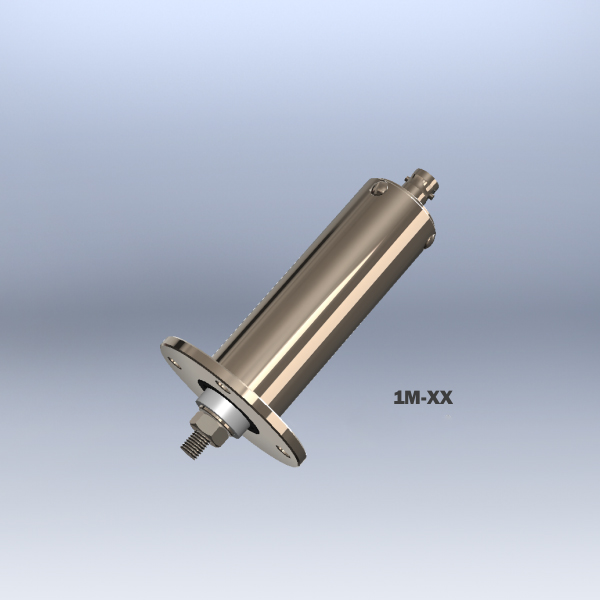

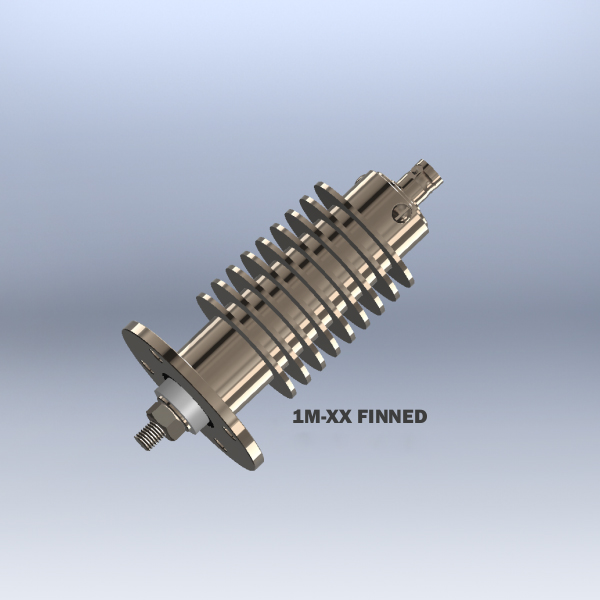

1M Models - 20 - Watt Hi-wattage Units - 4 3/4 Inch Overall Length
|
Model |
Resistance ohms |
Bandpass MHz. |
Risetime nsec. |
Emax joules |
|
1M-T10* |
0.05 |
1200 |
0.3 |
75 |
|
1M-05 |
0.025 |
400 |
1 |
150 |
|
1M-1 |
0.02 |
800 |
0.45 |
63 |
|
1M-2 |
0.01 |
200 |
2 |
125 |
|
1M-4 |
0.005 |
48 |
8 |
250 |
|
1M-8 |
0.0025 |
12 |
30 |
500 |
|
1M-10 |
0.002 |
8 |
45 |
625 |
|
1M-16 |
0.00125 |
3.2 |
113 |
1000 |
|
1M-20 |
0.001 |
2.2 |
164 |
1250 |

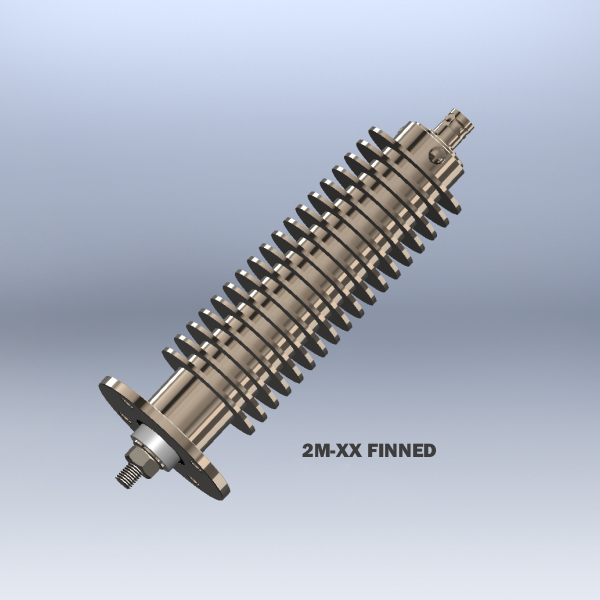

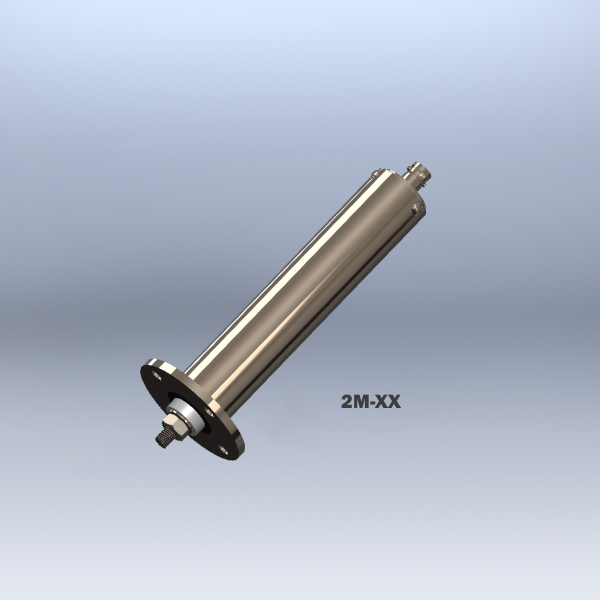

2M Models - 30 - Watt Hi-wattage Units - 6 3/4 Inch Overall Length
|
Model |
Resistance ohms |
Bandpass MHz. |
Risetime nsec. |
Emax joules |
|
2M-T10* |
0.1 |
800 |
0.45 |
150 |
|
2M-05* |
0.05 |
400 |
1 |
300 |
|
2M-1 |
0.04 |
400 |
1 |
125 |
|
2M-2 |
0.02 |
200 |
2 |
250 |
|
2M-4 |
0.01 |
48 |
8 |
500 |
|
2M-8 |
0.005 |
12 |
30 |
1000 |
|
2M-10 |
0.004 |
8 |
45 |
1250 |
|
2M-16 |
0.0025 |
3.2 |
113 |
1250 |
|
2M-20 |
0.002 |
2.2 |
164 |
2500 |
配置：标配含一根BNC线，德国TESTEC品牌，RG58型号
