High Voltage Probes高压探头

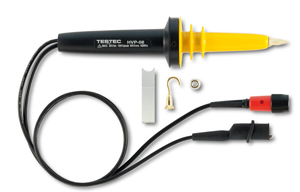

testec TT-HVP 08 | 1000:1
|
Attenuation Ratio |
x1000 |
|
Accuracy |
VDC ±2 % [+5 kV] |
|
Input Impedance |
100 MΩ, 3 pF |
|
Bandwidth |
40 MHz (-3 dB) |
|
Rise Time |
9 ns |
|
Cable Length |
2,0 m |
|
Compensation Range |
10..30 pF |
|
Max. Input Voltage |
DC 8 kV, AC 6 kVrms, PEAK 16 kV |
|
Dimensions (L x W x H) |
220 mm x 50 mm x 50 mm |
|
IEC1010 |
CAT I Pollution Degree 2 |
|
Order number |
15008 |

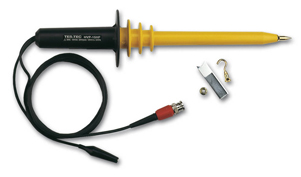

TT-HVP 15 B | 1000:1
|
Attenuation Ratio |
x1000 |
|
Accuracy |
VDC ±6 % |
|
Input Impedance |
100 MΩ, 3 pF ±0.5 pF |
|
Bandwidth |
40 MHz (-3 dB) |
|
Rise Time |
≤8.8 ns |
|
Cable Length |
2.0 m |
|
Compensation Range |
15..30 pF |
|
Max. Input Voltage |
DC 10 kV, AC 7 kVrms, PEAK 20 kV |
|
Dimensions (L x W x H) |
350 mm x 75 mm x 75 mm |
|
IEC61010-031: 2015 |
CAT 0 |
|
Order number |
15010 |

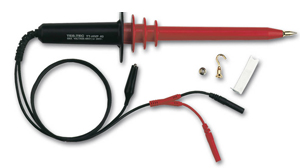

testec TT-HVP 2739 | 1000:1
|
Attenuation Ratio |
x1000 |
|
Accuracy |
VDC ±3 % |
|
Input Impedance |
900 MΩ, 1 pF |
|
Bandwidth |
DC ~220 MHz |
|
Rise Time |
1,6 ns |
|
Cable Length |
2,0 m |
|
Compensation Range |
15..35 pF |
|
Max. Input Voltage |
DC+AC peak 39 kV, AC 27 kVrms |
|
Dimensions (L x W x H) |
320 mm x 80 mm x 80 mm |
|
IEC1010 |
CAT I Pollution Degree 2 |
|
Order number |
15014 |
testec TT-HVP 40 | 1000:1
|
Attenuation Ratio |
x1000 @ 10 MΩ |
|
Input Impedance |
1000 MΩ |
|
Bandwidth |
300 Hz (-3 dB) |
|
Cable Length |
1,0 m |
|
Max. Input Voltage |
DC 40 kV, AC 28 kVrms (0..300 Hz) |
|
Abmessungen (L x W x H) |
350 mm x 75 mm x 75 mm |
|
IEC1010 |
CAT I Pollution Degree 2 |
|
Order number |
15001 |
