Differential Probes高压差分探头

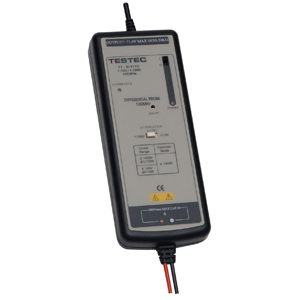

TT-SI 9001 | 1:10 / 1:100
|
Bandwidth |
DC to 25 MHz (-3dB) |
|
Attenuation Ratio |
x10 / x100 |
|
DC-Accuracy |
±2 % |
|
Input Impedance |
4 MΩ, 5.5 pF |
|
Rise Time |
14 ns |
|
Measurement Category |
CAT III |
|
Max. Amplitude |
±7 V (into 2 kΩ load) |
|
Offset |
<±5 mV |
|
Noise (typical) |
0.7 mVrms |
|
Source Impedance (typical) |
50 Ω (for using 1 MΩ |
|
CMRR (typical) |
-86 dB @ 50 Hz, -66 dB @ 20 kHz |
|
Input Voltage |
x10 ±70 V (DC + peak AC) |
|
Input Voltage |
x10 ±700 V (DC + peak AC) |
|
Input Voltage |
x10 ±1400 V (DC + peak AC) |
|
Power requirements |
4x AA Cells or Mains Adaptor |
|
Dimensions (L x W x H) |
170 mm x 63 mm x 21 mm |
|
Cable |
BNC Cable 95 cm |
|
Weight |
400 g (Probe and PVC-Jacket included) |
|
Order Number |
15101 |
TT-SI 9002 | 1:20 / 1:200
|
Bandwidth |
DC to 25 MHz (-3dB) |
|
Attenuation Ratio |
x20 / x200 |
|
DC-Accuracy |
±2 % |
|
Input Impedance |
4 MΩ, 5.5 pF |
|
Rise Time |
14 ns |
|
Measurement Category |
CAT III |
|
Max. Amplitude |
±7 V (into 2 kΩ load) |
|
Offset |
<±5 mV |
|
Noise (typical) |
0.7 mVrms |
|
Source Impedance (typical) |
50 Ω (for using 1 MΩ |
|
CMRR (typical) |
-86 dB @ 50 Hz, -66 dB @ 20 kHz |
|
Input Voltage |
x20 ±140 V (DC + peak AC) |
|
Input Voltage |
x20 ±1400 V (DC + peak AC) |
|
Input Voltage |
x20 ±1400 V (DC + peak AC) |
|
Power requirements |
4x AA Cells or Mains Adaptor |
|
Dimensions (L x W x H) |
170 mm x 63 mm x 21 mm |
|
Cable |
BNC Cable 95 cm |
|
Weight |
400 g (Probe and PVC-Jacket included) |
|
Order Number |
15102 |

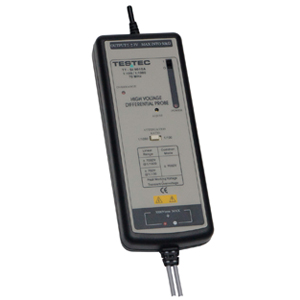

TT-SI 9071 | 1:10 / 1:100
|
Bandwidth |
DC to 70 MHz (-3 dB) |
|
Attenuation Ratio |
x10 / x100 |
|
DC-Accuracy |
±1 % |
|
Input Impedance |
4 MΩ, 5.5 pF each side to ground |
|
Rise Time |
5 ns |
|
Measurement Category |
CAT III |
|
Max. Amplitude |
±7 V (into < 5 kΩ load) |
|
Offset |
<±5 mV |
|
Noise (typical) |
2 mVrms |
|
Source Impedance (typical) |
50 Ω (for using 1 MΩ |
|
CMRR (typical) |
-80 dB @ 50 Hz, -60 dB @ 20 kHz |
|
Input Voltage |
x10 ±70 V (DC + peak AC) |
|
Input Voltage |
x10 ±700 V (DC + peak AC) |
|
Input Voltage |
x10 ±1400 V (DC + peak AC) |
|
Power requirements |
4x AA Cells or Mains Adaptor |
|
Dimensions (L x W x H) |
170 mm x 63 mm x 21 mm |
|
Cable |
BNC Cable 95 cm |
|
Weight |
400 g (Probe and PVC-Jacket included) |
|
Order Number |
15125 |
TT-SI 9101 | 1:10 / 1:100
|
Bandwidth |
100 MHz |
|
Attenuation Ratio |
x10 / x100 |
|
DC-Accuracy |
±2 % |
|
Input Impedance |
4 MΩ, 7 pF |
|
Rise Time |
3.5 ns |
|
Measurement Category |
CAT III |
|
Max. Amplitude |
±7 V (into 50 kW load) |
|
Offset |
<±5 mV |
|
Noise (typical) |
0.9 mVrms |
|
Source Impedance (typical) |
50 Ω (for using 1 MΩ |
|
CMRR (typical) |
-85 dB @ 50 Hz, -50 dB @ 1 MHz |
|
Input Voltage |
x10 ±70 V (DC + peak AC) |
|
Input Voltage |
x10 ±700 V (DC + peak AC) |
|
Input Voltage |
x10 ±1400 V (DC + peak AC) |
|
Dimensions (L x W x H) |
202 mm x 83 mm x 38 mm |
|
Weight |
500 g |
|
Accessories |
Hardcase and Power Supply are included |
|
Order Number |
15111 |
TT-SI 9110 | 1:100 / 1:1000
|
Bandwidth |
100 MHz |
|
Attenuation Ratio |
x100 / x1000 |
|
DC-Accuracy |
±2 % |
|
Input Impedance |
4 MΩ, 7 pF |
|
Rise Time |
3.5 ns |
|
Measurement Category |
CAT III |
|
Max. Amplitude |
±1.4 V (into 50kΩ load) |
|
Offset |
<±5 mV |
|
Noise (typical) |
0.6 mVrms |
|
Source Impedance (typical) |
50 Ω (for using 1 MΩ |
|
CMRR (typical) |
-80 dB @ 60 Hz, -50 dB @ 1 MHz |
|
Input Voltage |
x100 ±140 V (DC + peak AC) |
|
Input Voltage |
x100 ±1400 V (DC + peak AC) |
|
Input Voltage |
x100 ±1400 V (DC + peak AC) |
|
Power Requirements |
4x AA Cells or Mains Adaptor |
|
Dimensions (L x W x H) |
207 mm x 83 mm x 38 mm |
|
Cable |
BNC Cable 90 cm |
|
Weight |
500 g |
|
Accessories |
We recommend Power Supply TT-SI NT |
|
Order Number |
15120 |

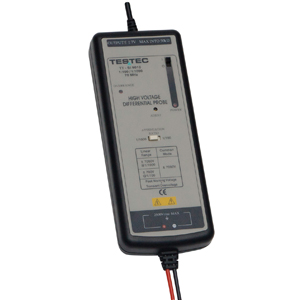

TT-SI 9010 | 1:100 / 1:1000
|
Bandwidth |
70 MHz |
|
Attenuation Ratio |
x100 / x1000 |
|
DC-Accuracy |
±2 % |
|
Input Impedance |
10 MΩ, 10 pF |
|
Rise Time |
5 ns |
|
Measurement Category |
CAT I |
|
Max. Amplitude |
±1.4 V (into 50kΩ load) |
|
Offset |
<±5 mV |
|
Noise (typical) |
0.9 mVrms |
|
Source Impedance (typical) |
50 Ω (for using 1 MΩ |
|
CMRR (typical) |
-80 dB @ 50 Hz, -60 dB @ 1 MHz |
|
Input Voltage |
x100 ±700 V (DC + peak AC) |
|
Input Voltage |
x100 ±7000 V (DC + peak AC) |
|
Input Voltage |
x100 ±7000 V (DC + peak AC) |
|
Power requirements |
4x AA Cells or Mains Adaptor |
|
Dimensions (L x W x H) |
202 mm x 83 mm x 38 mm |
|
Cable |
BNC Cable 90 cm |
|
Input Leads 60 cm |
|
|
Weight |
500 g (4 Cells included) |
|
Accessories |
We recommend Power Supply |
|
Order Number |
15106 |
TT-SI 9010A | 1:100 / 1:1000
|
Bandwidth |
70 MHz |
|
Attenuation Ratio |
x100 / x1000 |
|
DC-Accuracy |
±2 % |
|
Input Impedance |
50 MΩ, 10 pF |
|
Rise Time |
5 ns |
|
Measurement Category |
CAT I |
|
Max. Amplitude |
±1.4 V (into 50kΩ load) |
|
Offset |
<±5 mV |
|
Noise (typical) |
0.9 mVrms |
|
Source Impedance (typical) |
50 Ω (for using 1 MΩ |
|
CMRR (typical) |
-80 dB @ 50 Hz, -60 dB @ 20 kHz |
|
Input Voltage |
x100 ±700 V (DC + peak AC) |
|
Differential Mode |
or 500 Vrms |
|
Input Voltage |
x100 ±7000 V (DC + peak AC) |
|
Input Voltage |
x100 ±7000 V (DC + peak AC) |
|
Power requirements |
4x AA Cells or Mains Adaptor |
|
Dimensions (L x W x H) |
202 mm x 83 mm x 38 mm |
|
Cable |
BNC Cable 90 cm |
|
Weight |
500 g (4 Cells included) |
|
Accessories |
We recommend Power Supply |
|
Order Number |
15108 |

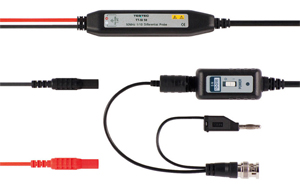

TT-SI 50 | 1:10
|
Bandwidth |
50 MHz |
|
Attenuation Ratio |
x10 |
|
DC-Accuracy |
±1 % |
|
Input Impedance |
1.6 MΩ, 7 pF |
|
Measurement Category |
CAT I |
|
Input Voltage |
±70 V (DC + peak AC) or 70 Vrms |
|
Input Voltage |
±700 V (DC + peak AC) or 600 Vrms |
|
Input Voltage |
±700 V (DC + peak AC) or 600 Vrms |
|
Power requirements |
Battery pack (4x AA Cells) |
|
or Main Adaptors 6 VDC / 90 mA |
|
|
or regulated 9 VDC / 70 mA |
|
|
Dimensions (L x W x H) |
111 mm x 22 mm x 14 mm |
|
Cable |
BNC Cable 125 cm |
|
Input Leads 50 cm |
|
|
Weight |
300 g Hardcase included |
|
Order Number |
15130 |
TT-SI 51 | 1:100
|
Bandwidth |
50 MHz |
|
Attenuation Ratio |
x100 |
|
DC-Accuracy |
±1 % |
|
Input Impedance |
4 MΩ, 7 pF |
|
Measurement Category |
CAT II |
|
Input Voltage |
±700 V (DC + peak AC) or 600 Vrms |
|
Input Voltage |
±1400 V (DC + peak AC) or 600 Vrms |
|
Input Voltage |
±1400 V (DC + peak AC) or 600 Vrms |
|
Power requirements |
Battery pack (4x AA Cells) |
|
Dimensions (L x W x H) |
111 mm x 22 mm x 14 mm |
|
Cable |
BNC Cable 125 cm |
|
Weight |
300 g Hardcase included |
|
Order Number |
15131 |
TT-SI 200 | 1:10
|
Bandwidth |
200 MHz |
|
Attenuation Ratio |
x10 |
|
DC-Accuracy |
±1 % |
|
Input Impedance |
500 kW, 7 pF |
|
Measurement Category |
CAT I |
|
Rise Time |
1.75 ns |
|
Max. Amplitude |
±2 V (into 50 W load) |
|
Offset |
<±2 mV |
|
Noise (typical) |
0.3 mVrms |
|
Source Impedance (typical) |
50 W |
|
CMRR (typical) |
-80 dB @ 100 Hz, -50 dB @ 10 MHz |
|
Input Voltage |
±20 V (DC + peak AC or rms) |
|
Input Voltage |
±60 V (DC + peak AC or rms) |
|
Input Voltage |
±60 V (DC + peak AC or rms) |
|
Power requirements |
Main Adaptors 12 VDC / 50 mA |
|
Dimensions (L x W x H) |
111 mm x 22 mm x 14 mm |
|
Cable |
BNC Cable 120 cm |
|
Weight |
130 g |
|
Order Number |
15135 |
