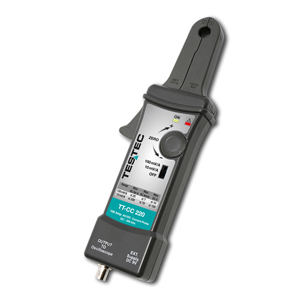

TESTEC电流探头
|
Measurement Ranges |
100 mV/A - 10 mV/A |
|
Current |
10 A - 100 A |
|
DC Measurement Accuracy |
±3% ±50 mA @ 100 mV/A |
|
±4% ±50 mA @ 10 mV/A |
|
|
±15% max @ 10 mV/A |
|
|
Bandwidth |
DC - 300 kHz |
|
Rise and Fall Time |
1.2 µs |
|
Max. Working Voltage |
600 VAC RMS CAT II / |
|
300 VAC RMS CAT III |
|
|
Max. Floating Voltage |
600 VAC RMS CAT II / |
|
300 VAC RMS CAT III |
|
|
Battery-Typ |
9 V Alkaline (NEDA 1604, IEC 6LR61) |
|
Battery Life |
8 h |
|
Operating Temperature |
0 bis 50 °C |
|
Storage Temperature |
-20 bis 80 °C |
|
Max. Operating Humidity |
0 bis 40 °C, 95 % humidity |
|
40 bis 50 °C, 45 % humidity |
|
|
Pollution Degree |
2 |
|
Maximum Conductor |
11 mm |
|
Dimensions (L x B x H) |
265 mm x 80 mm x 36 mm |
|
Weight |
260 g |
|
Accessories |
Hardcase and Power Supply included |
|
Order number |
15322 |
TT-CC 550
|
Measurement Ranges |
200 mV/A - 20 mV/A |
|
Current |
5 A - 50 A |
|
DC Measurement Accuracy |
±3% ±30 mA @ 200 mV/A |
|
±4% ±300 mA @ 20 mV/A |
|
|
±15% @ 200 mV/A |
|
|
Bandwidth |
DC - 500 kHz |
|
Rise and Fall Time |
0.7 µs |
|
Max. Working Voltage |
600 VAC RMS CAT II / |
|
300 VAC RMS CAT III |
|
|
Max. Floating Voltage |
600 VAC RMS CAT II / |
|
300 VAC RMS CAT III |
|
|
Battery-Typ |
9 V Alkaline (NEDA 1604, IEC 6LR61) |
|
Battery Life |
8 h |
|
Operating Temperature |
0 bis 50 °C |
|
Storage Temperature |
-20 bis 80 °C |
|
Max. Operating Humidity |
0 bis 40 °C, 95 % humidity |
|
40 bis 50 °C, 45 % humidity |
|
|
Pollution Degree |
2 |
|
Maximum Conductor |
11 mm |
|
Dimensions (L x B x H) |
265 mm x 80 mm x 36 mm |
|
Weight |
260 g |
|
Accessories |
Hardcase and Power Supply included |
|
Order number |
15355 |
TT-CC 770
|
Measurement Ranges |
500 mV/A - 50 mV/A |
|
Current |
7 A - 70 A |
|
DC Measurement Accuracy |
±3% ±20 mA @ 500 mV/A |
|
±4% ±200 mA @ 50 mV/A |
|
|
±15% @ 50 mV/A |
|
|
Bandwidth |
DC - 1 MHz |
|
Rise and Fall Time |
0.35 µs |
|
Max. Working Voltage |
600 VAC RMS CAT II / |
|
300 VAC RMS CAT III |
|
|
Max. Floating Voltage |
600 VAC RMS CAT II / |
|
300 VAC RMS CAT III |
|
|
Battery-Typ |
9 V Alkaline (NEDA 1604, IEC 6LR61) |
|
Battery Life |
6 h |
|
Operating Temperature |
0 bis 50 °C |
|
Storage Temperature |
-20 bis 80 °C |
|
Max. Operating Humidity |
0 bis 40 °C, 95 % humidity |
|
40 bis 50 °C, 45 % humidity |
|
|
Pollution Degree |
2 |
|
Maximum Conductor |
10.3 mm |
|
Dimensions (L x B x H) |
262 mm x 80 mm x 36 mm |
|
Weight |
310 g |
|
Accessories |
Hardcase and Power Supply included |
|
Order number |
15377 |
TT-CC 990
|
Measurement Ranges |
1 V/A - 100 mV/A |
|
Current |
4 A - 40 A |
|
DC Measurement Accuracy |
±3% ±10 mA @ 1 V/A |
|
Bandwidth |
DC - 1.5 MHz |
|
Rise and Fall Time |
0.23 µs |
|
Max. Working Voltage |
600 VAC RMS CAT II / |
|
Max. Floating Voltage |
600 VAC RMS CAT II / |
|
Battery-Typ |
9 V Alkaline (NEDA 1604, IEC 6LR61) |
|
Battery Life |
4 h |
|
Operating Temperature |
0 bis 50 °C |
|
Storage Temperature |
-20 bis 80 °C |
|
Max. Operating Humidity |
0 bis 40 °C, 95 % humidity |
|
Pollution Degree |
2 |
|
Maximum Conductor |
10.3 mm |
|
Dimensions (L x B x H) |
262 mm x 80 mm x 36 mm |
|
Weight |
310 g |
|
Accessories |
Hardcase and Power Supply included |
|
Order number |
15399 |
