DOM Series
Compact bi-polar power supplies for electromagnet日本松定电源放大器
Suitable for precise control of magnetization and demagnetization by electromagnet!
DOM series is a four-quadrant bi-polar power supply which succeeded in miniaturization by high-efficiency switching amplifier method and electric power regenerative function.
It can also realize smooth demagnetization, thanks to large current which is required in magnetization of the electromagnet and four-quadrant operation that can perform both “source” and “sink” of electric power.
By the simple operation on the front panel, the setting of output voltage/current and the outputting safely are available.
Features

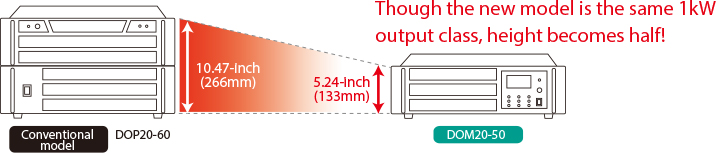

Source and sink of current of ±125A maximum are available in spite of the compact size of height 3U.
DOM can control electromagnet quickly and precisely because of four-quadrant operation.
Utilizing electricity effectively* and reducing generation of heat are available because of electric power regenerative function.
Low ripple, excellent stability and useful protection realize high performance and safer safety.
* It is designed on the assumption that all regenerated electrical power is consumed on the premises.
Applications
Control of electromagnet, testing for in-vehicle electrical components and various motors, evaluation test for solar panel and film formation (electroplating)
|
DOM series is not the power supply which is designed for evaluating charge/discharge of batteries. There is the dedicated power supply which is suitable for such a use, so please feel free to refer. |

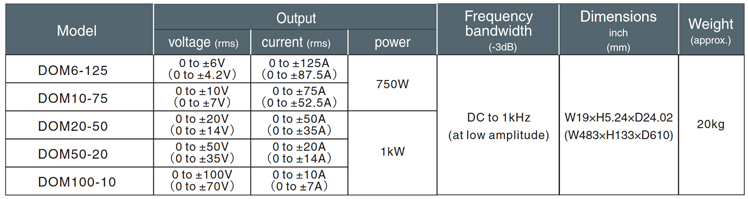

Specification
Options
-LGobOptical Interface Board
-LGob: Optical interface board + optical cable 2m
-LGob (Fc5) : Optical interface board + optical cable 5m
-LGob (Fc10) : Optical interface board + optical cable 10m
-LGob (Fc20) : Optical interface board + optical cable 20m
-LGob (Fc40) : Optical interface board + optical cable 40m

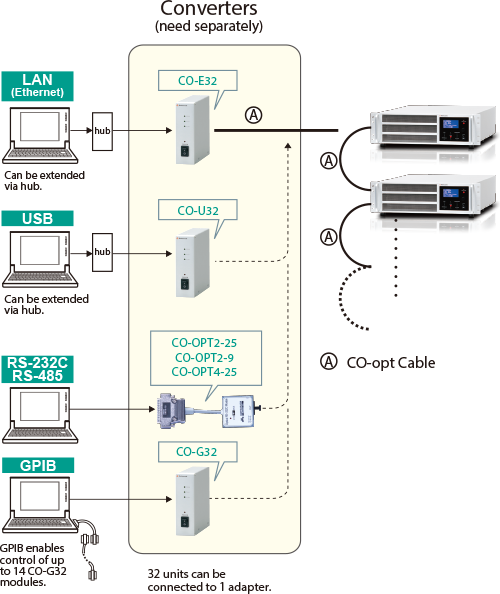

Isolated control is realized via optical communication.
It is possible to prevent malfunction such as transient phenomenon by surge, lightning induction and exogenous noise.
[Controllable items]
Output ON/OFF, setting the value of output voltage/current, switching CV mode and CC mode
(A converter is required separately. Please ask our sales representative.)
Select the -LGob option when using power supply following environmental condition.
|
How to Orde rWhen ordering, suffix the following option mark to the model number.
Example:
DOM100-10-LGob
DOM6-125-LGob(Fc40)
(Alphabetical and input voltage order)
