AMS/AMT Series

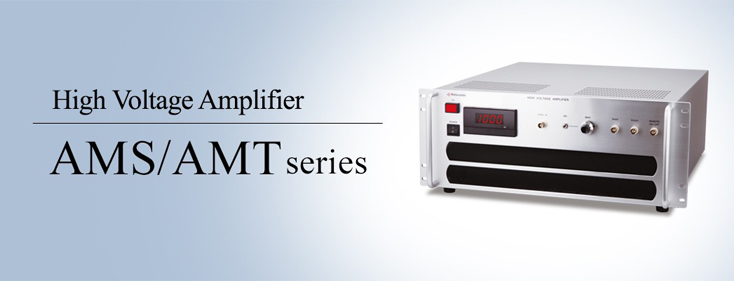

AMS/AMT: rack mount high speed, fast response high voltage operational amplifier
High Voltage Amplifier
AMS·AMT series is a rack mountable type, fast response high voltage operational amplifier. It gives quick response as fast as 100kHz and provides high voltage outputs in reference to its input wave forms such as Sine, Triangle, Saw Tooth, Square Wave Forms and more. 13 different models are available as an standard unit. They are all solid state. Output voltage ranges from ±600V to ±20kV.
Feature & Outline
- Output ±600V to ±20kV
- High speed response 360V /μ sec (AMT)
- Various types of output wave forms according to the input wave
- DC bias function
- DC output voltage monitor (3.5-digit digital meter)
Applications
- Beam deflection
- Corona discharge
- Electrostatic chuck
- Electrophotography process
- Breakdown voltage testing
- Electroviscocity fluid
- Lighting discharge tube
- Various electrostatic testing

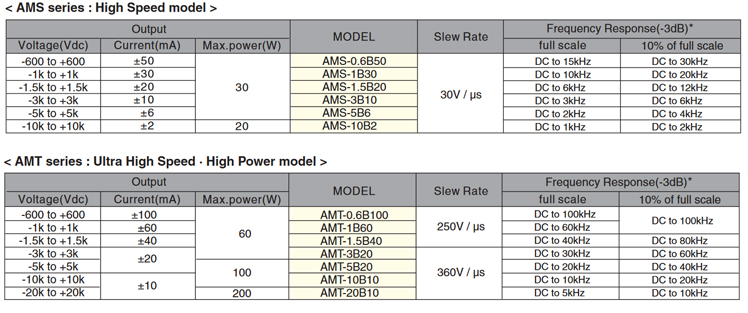

Specification
INPUT/OUTPUT CABLE
Input cable
Input : 115V models --> CABLE TYPE1
Input : 230V models --> CABLE TYPE3
Length is 2.5m for both. (see CABLE series catalog for details)
Output cable
CN-40-AHVP HV output cable 1.5m (standard)
CN-40-AHVP(5) HV output cable 5m (-L (5m) option)
Options
-LC
CURRENT LIMIT
Limits the output current at time of overload
-LN
Cancellation of blackout protection
-L1
Output current monitor -10V to +10V from BNC connector on front panel(output impedance 1k up to 2kHz bandwidth)
-L(230V)
Input Voltage AC230V ±10% single phase
-L(5m)
HV output cable 5m
Please note that using 5-meter long cable may decrease slew rate, response time, and distort output waveforms. Please see Page 15 “Capacitive load” for details.
*When ordering, please suffix -L Mark(option mark) to the model number.
{e.g.} AMS-1B30-LC, AMS-1B30-LCN1(230V)(5m)
For combined options, please arrange option marks in an alphabetical order.
