COR Series
松定电源放大器Constant Voltage and Constant Current
Constant Voltage and Constant Current HV Amplifier

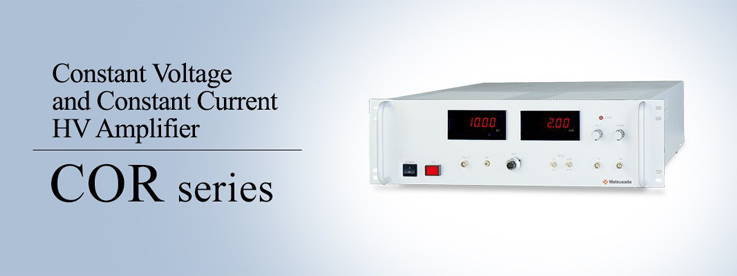

COR-10B2 is a bi-polar high speed HV amplifier developed with our long experience and expertise in HV power supply field. High performance and reliability is achieved by all-solid-state configuration.
Feature&Outline
- 3 functions of CC, CV and HV amplifier in one unit
- Four-quadrant output ±10kV, ±2mA
- Fast response of slew rate 30V / μs
- Return current terminal is standard and best for corona current control
Applications
- Photosensitive drum testing
- Experiment of corona discharge
- Research and Development of electro photographic process
Specification
Corona current control (return current control)

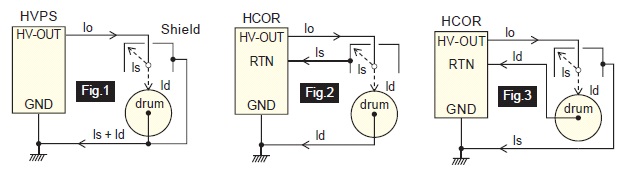

When a HV power supply is used to charge the photo sensitive drum, in most case the purpose is to control the drum current(Id). Normal power supply can only control the drum current(Id) and lead current to shield.(fig 1.)
Using the RTN terminal COR enable you to control the drum current(Id) precisely even if the drum is grounded or not. (fig2. and 3.)
INPUT / OUTPUT CABLE
Input cable
Input : 115V models ⇒ CABLE TYPE1
Input : 230V models ⇒ CABLE TYPE3
Length is 2.5m for both. (see CABLE series catalog for details)
Output cable
CN-40-AHVP HV output cable 1.5m (standard)
CN-40-AHVP(5) HV output cable 5m (-L(5m) option)
Options
-L(230V)
Input Voltage AC230V ±10% single phase
-L(5m)
HV output cable 5m
Please note that using 5-meter long cable may decrease slew rate,
response time, and distort output waveforms.
Please see Page 15 “Capacitive load” for details.
*When ordering, please suffix -L Mark(option mark) to the model number.
{e.g.} COR-10B2-L(230V)(5m)
