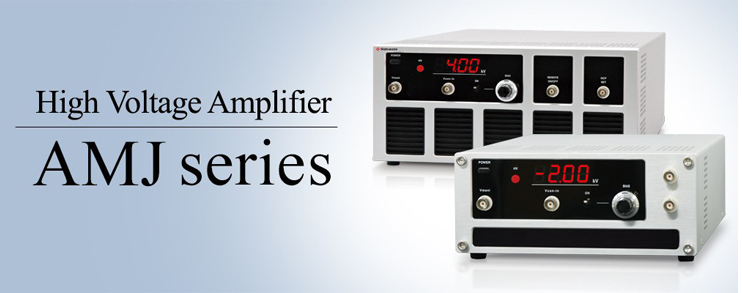

AMJ Series

松定电源放大器AMJ series is a rack mountable type, fast response HV operational amplifier.



Ultra Compact and Fast Responce High Voltage Amplifier

AMJ series is a rack mountable type, fast response high voltage operational amplifier. It provide high voltage and fast response as high as 75kHz according to its input waveforms including Sine, Triangle, Saw Tooth, Square and more. 7 different models are available as an standard unit. They are all solid state power supplies. Output voltage ranges from ±500V to ±4kV.


Feature&Outline

  • Ultra compact
  • High speed response 75kHz max
  • Various types of output wave forms
  • according to the input wave
  • DC bias function
  • DC output voltage monitor(3.5-digit digital meter)

Applications

  • Beam deflection
  • Electrophotography process
  • Corona discharge
  • Electroviscocity fluid
  • Breakdown voltage testing
  • Lighting discharge tube
  • Electrostatic chuck
  • Various electrostatic testing

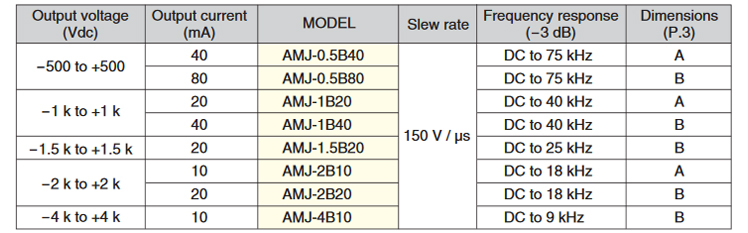

Specification


Option

-LCs
Over current protection setting function
Set the over current value by external voltage

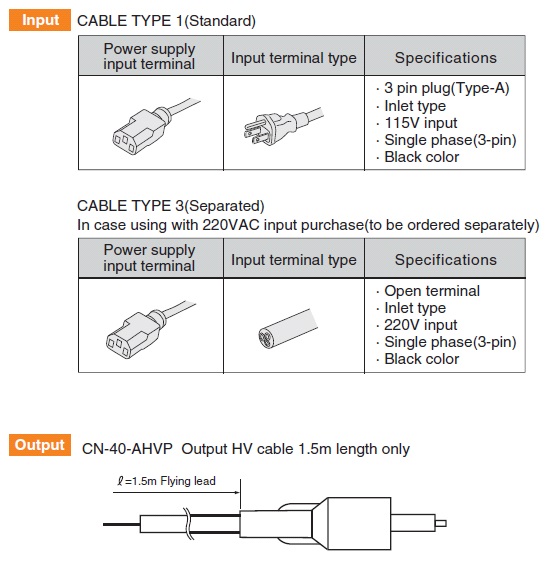

INPUT / OUTPUT CABLE

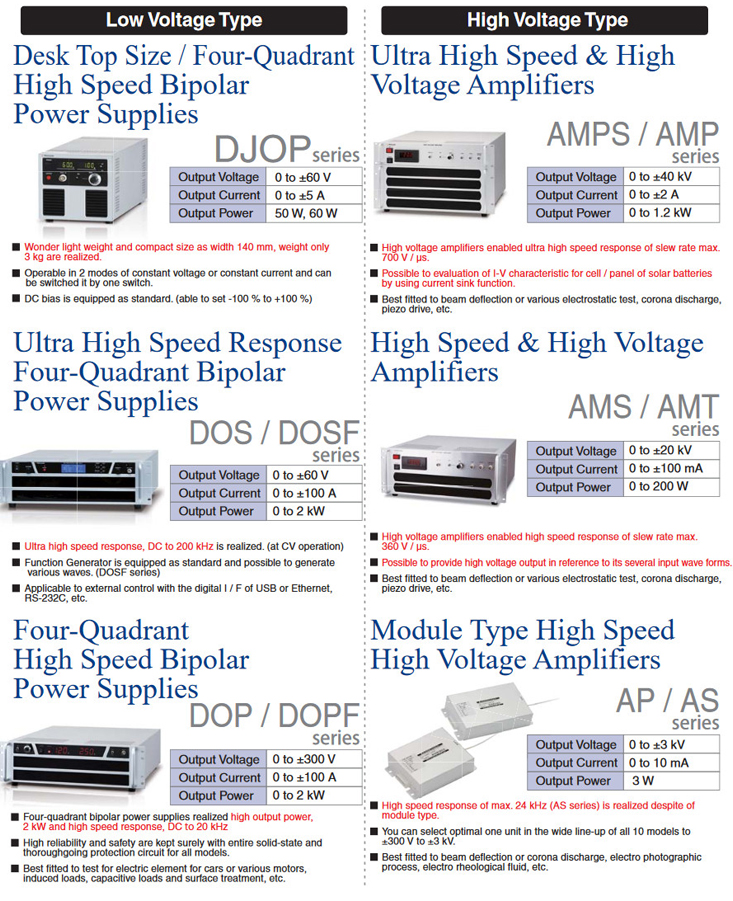

Other products
