AP/AS Series
High-speed high voltage amplifier - Compact module松定电源放大器

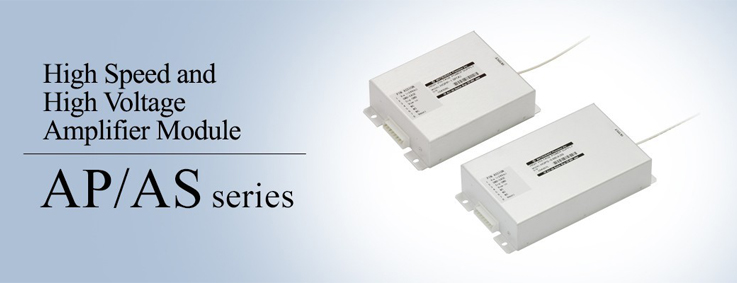

High Speed and High Voltage Amplifier Module
AS series is a fast response high voltage operational amplifier module. Matsusada's long experience and expertise in HVPS field has made this high precision, high reliable product possible in the market.
AP series provides 250Hz to 2kHz, and produces high voltage output in sine waves, triangle waves, saw tooth waves and square waves proportional to the input wave type. 10 different models are available in this series. We also take a custom orders according to your requirements.
Feature&Outline
Wide Output Range
The wide lineup by frequency, output voltage and output polarity will enable users to select the best suitable model for various application among 10 different models.
Fast Responsibility Maximum 30kHz
AS series achieved the higher speed and wider bandwidth of maximum 30kHz. 5 time faster than AP series.
Desired output waveform reference to input waveform.
External control voltage to BNC input terminal on front panel,-10V to +10V, controls the high voltage output with desired waveform.
Compact module type
The compact size is ideal for developing compact products and systems as integrated module. The encapsulation molding which is well resistive to moisture, dust, vibration or impact gain the reliability of the product.
24V input voltage
Simple operation with only 24V input voltage and -10V to +10V control voltage.
High reliability
With Matsusada's unique technology and know-how developed by HV DCPS technologies, we provide highly reliable and safe products.
All-Solid-State
Longer life time with all-solid-state configuration.
Applications
- Beam deflection
- Insulation and breakdown voltage test
- Electro photography process
- Various Electrostatic tests
- Corona discharge
- Electrostatic chuck
- Electro viscosity fluid

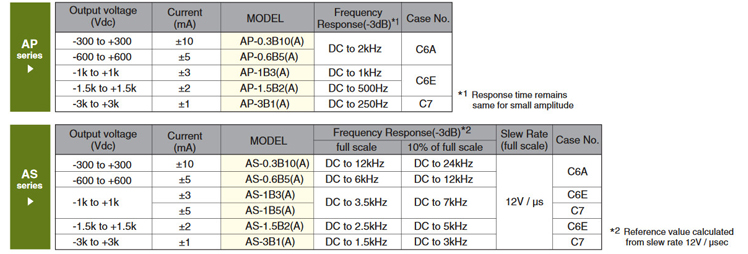

Specification

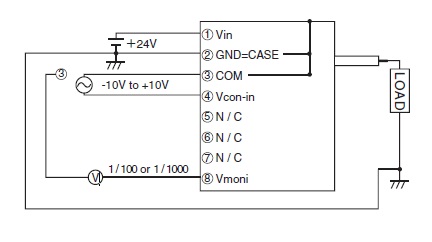

Connection
