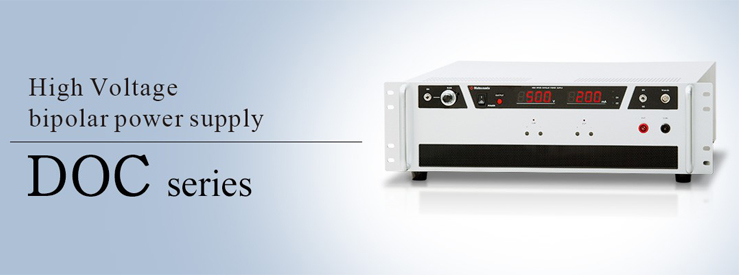

DOC Series

松定电源放大器High voltage Bipolar power supplies


High Voltage / Fast Response Four-quadrant bipolar power supplies

DOC series are ±500V / ±1000V high voltage four-quadrant bipolar power supplies. With its feature of voltage limit and current limit setting at will. It will drastically reduce the risk of applying excessive stress on your load. The output terminal is available on the front panel for excellent operability.


Feature&Outline

Compact, high voltage, and high power
Four-quadrant output(Source and Sink are available.)
CV (constant voltage) / CC operation (constant current) is selectable
Voltage limit, Current limit setting feature

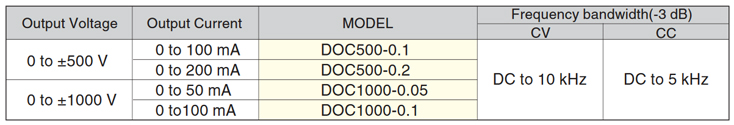

Specification

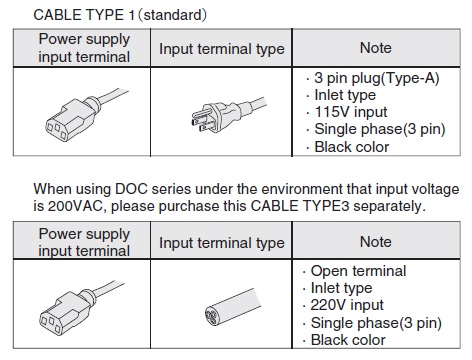

Input cable


Options

-LNNo protection against blackout
When ordering, suffix the following option mark to the model number.
