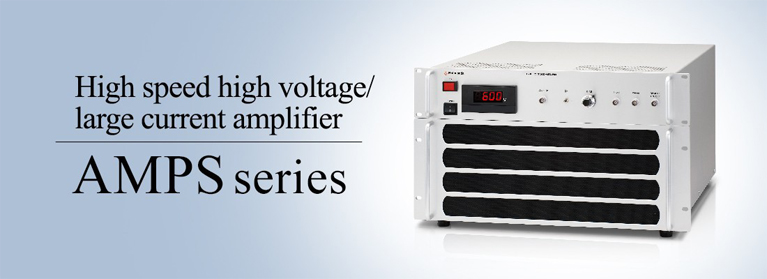

AMPS Series
松定电源放大器AMPS: Ultra high speed high voltage amplifier
Maximum slew rate 1200V/μs ! High speed high voltage/large current amplifier
AMPS series is an ultra-high speed high voltage amplifier. It realized high voltage output of ±20kHz and very high slew rate 1200V/μs. The large current type of peak current 4A is also selectable.
Feature&Outline
Ultra high slew rate 1200V/μs
±10kV output model and ±20kV output model achieved the conventional double high-speed response of slew rate 1200V/μs. Laser modulation and beam deflection at unprecedented high speed are possible.

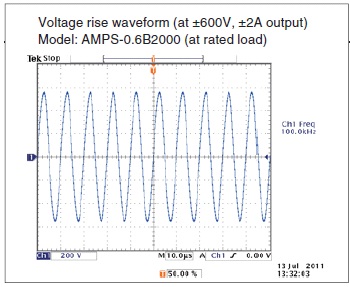

High-speed response of frequency bandwidth 100kHz
Frequency bandwidth with actual load is as high as 100kHz, and solve the problem of “When actual operation with load, the response become slow.” Ideal for higher speed printer or material evaluation testing.
For measuring voltage and / or current

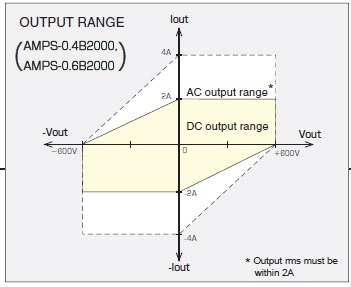

When the voltage at load is lower than the rated maximum output of AMPS series, constant voltage and high speed operation is possible by sinking the output current with current sink feature. As example of the development of ceramic and electrophotography process, by current sink, it is possible to absorb the voltage of a capacitive load quickly or to perform diselectrification smoothly. And, because of double peak current of rated current in DC output, particularly, rise characteristics for the capacitive load can be improved.

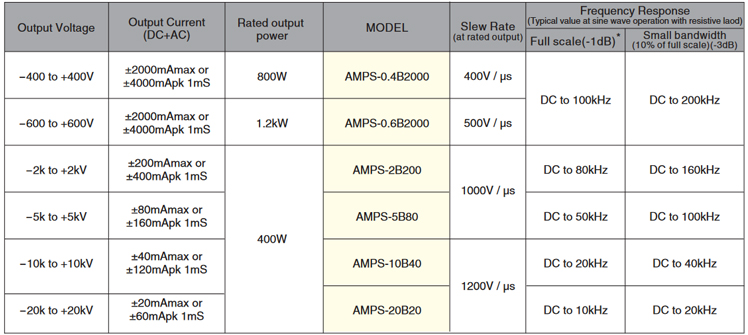

Specification
Applications
- Beam deflection
- Laser modulation
- Ceramic materials testing
- HV cable testing
- Electrophotography process
- Piezo drive
- Evaluations of solar battery panel,secondary battery or display
- Various electrostatic testing

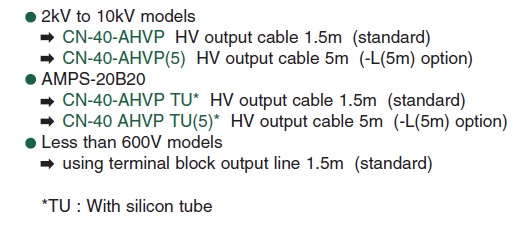

Output cable

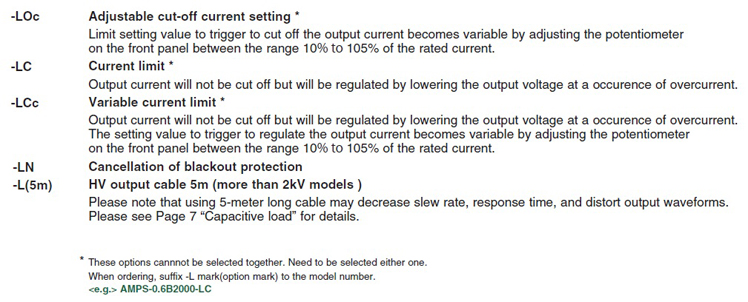

Option
